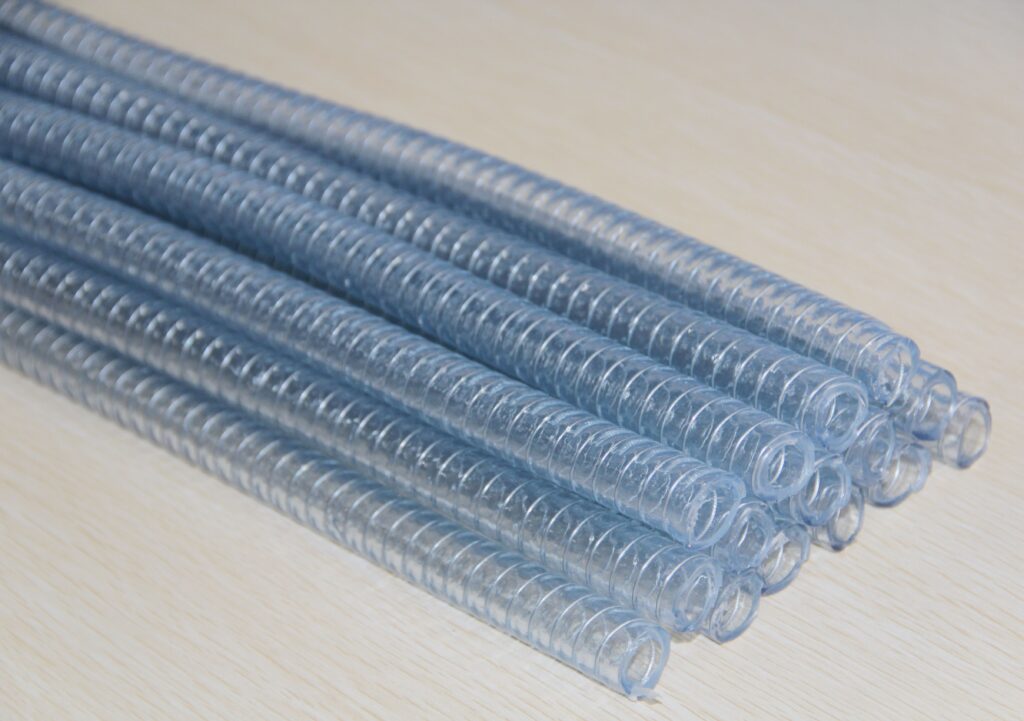

PVC steel wire reinforced hose with visible spiral wire construction
Product Description
Key Specifications
Applications
Construction Machinery Water Transfer
Used with construction machinery and pumps for water transfer, drainage, and temporary suction or discharge lines. Buyers can select light-duty or heavy-duty construction according to the installation and operating requirement.
Engineering Site Drainage
Suitable for moving water in engineering projects, drainage areas, and temporary work sites. The steel wire spiral supports the hose structure while the transparent wall helps users visually monitor flow.
Industrial Liquid Transfer
Used for transferring compatible liquids between tanks, pumps, and equipment in industrial facilities. Buyers should confirm the medium, temperature, pressure, and line-routing requirements before selection.
Machinery Suction and Discharge Lines
Suitable for equipment requiring a flexible hose with spiral support. The appropriate duty type, inner diameter, and pressure rating should be selected according to pump capacity and application conditions.
Distributor Industrial Hose Supply
A practical hose category for distributors serving construction, machinery, agricultural, and industrial buyers. Light-duty and heavy-duty options allow product selection for different market requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | PVC Steel Wire Reinforced Hose |
| Material | PVC with spiral steel wire reinforcement |
| Construction | Transparent PVC hose with embedded steel wire spiral |
| Duty Options | Light Duty and Heavy Duty |
| Inner Diameter Range | 19 mm to 102 mm |
| Outer Diameter Range | 24 mm to 116 mm |
| Working Pressure | 2–6 bar at 23°C, depending on duty type and size |
| Burst Pressure | 6–18 bar at 23°C, depending on duty type and size |
| Temperature Range | 6–18 bar at 23°C, depending on duty type and size |
| Length | ≤ 50 m |
| Color | Transparent blue shown; available according to customer requirements |
| Packaging | Coiled hose packing |
| MOQ | Please confirm based on selected size, duty type, packaging, and application |
Key Features
Spiral Steel Wire Support
The hose contains an embedded steel wire spiral. This construction helps support hose shape in suction and discharge installations.
Transparent PVC Wall
The clear blue PVC wall allows users to observe the flow inside the hose. This can help during installation and routine operation.
Light and Heavy Duty
The supplied specifications include light-duty and heavy-duty options. Buyers can select according to hose size, pressure requirement, and intended use.
Wide Diameter Range
Confirmed inner diameters range from 19 mm to 102 mm. This supports selection for different pump connections and flow requirements.
Specified Pressure Options
Listed working pressure is 2–6 bar at 23°C, depending on selected size and duty type. Please confirm based on selected size and application.
Flexible Equipment Connection
The hose can be used for connecting pumps, machinery, tanks, and drainage equipment where a flexible reinforced line is needed.
Coiled Export Supply
Hose length is listed as up to 50 m and can be supplied in coils for storage, loading, and international delivery.
OEM Order Discussion
Color, packaging, labels, and private-label requirements are available according to customer requirements.
Customization Options
Duty Type Selection
Light-duty and heavy-duty structures are available in the supplied product specifications. Please confirm based on selected size and application.
Size Customization
Confirmed inner diameters range from 19 mm to 102 mm. Other requirements are available according to customer requirements.
Length Customization
The listed hose length is up to 50 m. Other length requirements can be discussed before order confirmation.
Color Customization
Transparent blue is shown in the product image. Color requirements are available according to customer requirements.
Manufacturing Process
Raw Material Preparation
PVC materials and steel wire are prepared according to the confirmed hose specification.
PVC Mixing
PVC compound is mixed for the required hose formulation and appearance.
Inner Layer Extrusion
PVC material is extruded to form the inner hose layer.
Steel Wire Reinforcement
Spiral steel wire is incorporated into the hose construction according to the selected size and duty type.
Outer Layer Extrusion
The PVC outer layer is formed around the reinforced structure.
Cooling
The hose is cooled to stabilize its shape and dimensions.
Cutting and Coiling
Finished hose is cut or coiled according to the agreed length requirement.
Inspection and Packaging
Hose is checked against confirmed requirements and packed for export shipment.
Quality Control
Raw Material Inspection
PVC materials and steel wire are checked against the confirmed product requirement before production.
Dimension Inspection
Inner diameter, outer diameter, wall construction, and hose length are checked according to the selected specification.
Appearance Inspection
The transparent hose wall, spiral-wire appearance, color, and coil condition are visually checked before packing.
Performance Testing
Performance testing is carried out according to the agreed product specification. Please confirm based on selected size, duty type, medium, and application.
Final Inspection
Finished coils, quantity, packing condition, labels, and agreed shipping marks are checked before shipment.
Packaging & Delivery
Standard Packaging:
PVC Steel Wire Reinforced Hose is supplied in coiled lengths up to 50 m.
Export Packaging:
Export packing can be arranged according to customer requirements to support safe handling and transportation.
Container Loading:
Loading quantity depends on hose diameter, coil dimensions, packing method, and container type. A loading plan can be confirmed with the quotation.
Shipping Preparation:
Before shipment, orders can be prepared with agreed labels, shipping marks, packing details, and export documents. Please confirm delivery time based on size, quantity, customization, and destination.
Frequently Asked Questions
Standard Packaging: PVC Steel Wire Reinforced Hose is supplied in coiled lengths up to 50 m. Export Packaging: Export packing can be arranged according to customer requirements to support safe handling and transportation. Container Loading: Loading quantity depends on hose diameter, coil dimensions, packing method, and container type. A loading plan can be confirmed with the quotation. Shipping Preparation: Before shipment, orders can be prepared with agreed labels, shipping marks, packing details, and export documents. Please confirm delivery time based on size, quantity, customization, and destination.
PVC Steel Wire Reinforced Hose is commonly used for suction and discharge work with construction machinery, pumps, engineering equipment, and industrial liquid-transfer systems. The steel wire spiral supports the hose structure. Buyers should confirm the conveyed medium, temperature, pump condition, and pressure requirement before selecting a size.
PVC Steel Wire Reinforced Hose is commonly used for suction and discharge work with construction machinery, pumps, engineering equipment, and industrial liquid-transfer systems. The steel wire spiral supports the hose structure. Buyers should confirm the conveyed medium, temperature, pump condition, and pressure requirement before selecting a size.
PVC Steel Wire Reinforced Hose is commonly used for suction and discharge work with construction machinery, pumps, engineering equipment, and industrial liquid-transfer systems. The steel wire spiral supports the hose structure. Buyers should confirm the conveyed medium, temperature, pump condition, and pressure requirement before selecting a size.
PVC Steel Wire Reinforced Hose is commonly used for suction and discharge work with construction machinery, pumps, engineering equipment, and industrial liquid-transfer systems. The steel wire spiral supports the hose structure. Buyers should confirm the conveyed medium, temperature, pump condition, and pressure requirement before selecting a size.
The confirmed inner-diameter range is 19 mm to 102 mm. Available inch sizes begin at 3/4 inch and extend to 4 inches. The correct size should match the pump connection, coupling, required flow, installation length, and working conditions.
What working pressure is available?
The provided specifications list working pressure from 2 to 6 bar at 23°C, depending on duty type and size. Burst pressure is listed from 6 to 18 bar. Please confirm the required pressure based on the selected size and actual application.
Can this hose be used for suction applications?
The embedded steel wire spiral is designed to support the hose shape in suction and discharge installations. However, suitability should be confirmed based on the exact medium, vacuum condition, hose diameter, bend radius, temperature, and pump setup.
Can I choose a different hose length?
The image lists hose length as up to 50 m. Other length requirements can be discussed before order confirmation. Availability depends on selected diameter, duty type, coil packing, order quantity, and shipping arrangement.
Can Yoshine Hose provide custom colors and private-label packaging?
Transparent blue is shown in the supplied image. Color, coil packing, labels, shipping marks, and private-label packaging are available according to customer requirements. Please provide product size, target market, packaging reference, and estimated quantity for review.
What is the MOQ?
MOQ should be confirmed based on selected size, light-duty or heavy-duty type, length, packaging, and OEM requirements. Share the quantity required for each size so Yoshine Hose can prepare a relevant quotation and loading suggestion.
How is quality checked before shipment?
Inspection can include incoming PVC and steel wire, hose dimensions, appearance, wire-spiral condition, length, packing, and agreed performance requirements. Buyers with specific inspection standards should provide them before order confirmation.
What information is needed for a quotation?
Please provide duty type, inner diameter, length, quantity, conveyed medium, working pressure, application, packaging requirement, destination port, and any OEM request. This helps Yoshine Hose confirm the suitable hose configuration and export packing details.
