PVC transparent tube for industrial water transfer
Product Description
Key Specifications
Applications
Factory Water and Fluid Transfer
PVC Transparent Tube is used for routine water and compatible fluid transfer between tanks, workstations, and equipment. The clear wall helps operators visually check flow conditions during installation and operation.
Farm and Small Irrigation Lines
Used for light-duty water transfer in farms, gardens, and small irrigation systems. Buyers can choose diameter according to the required connection size and flow requirement.
Shipbuilding and Marine Workshop Use
Suitable for general water and fluid-transfer tasks in shipbuilding or marine workshop environments under normal working conditions. Buyers should confirm the conveyed medium and installation condition before selection.
Household and General Utility Water Lines
Used for non-specialized water transfer, drainage, and utility connections where a flexible transparent tube is required. The coil format supports convenient storage for distributors and end users.
Low-Pressure Oil and Gas Transfer
The supplied product information lists water, oil, and gas transfer under normal working conditions. Buyers should confirm medium compatibility, pressure, temperature, and local requirements before ordering.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | PVC Transparent Tube |
| Material | PVC |
| Construction | Transparent flexible PVC tube |
| Size Range | 1/4" to 2" |
| Inner Diameter | 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25 mm, 32 mm, 38 mm, 50 mm |
| Outer Diameter | 8 mm to 58 mm, depending on size |
| Standard Length | 100 m per roll |
| Working Pressure | 0.3–0.6 MPa at 23°C, depending on size |
| Burst Pressure | 0.9–1.6 MPa at 23°C, depending on size |
| Temperature Range | -5°C to +65°C |
| Color | Transparent; other requirements available according to customer requirements |
| Packaging | Coiled roll packaging |
| MOQ | Please confirm based on selected size, packaging, and application |
Key Features
Clear Tube Appearance
The transparent PVC wall allows users to observe the liquid flow inside the tube. This can help during installation and routine operation.
Flexible PVC Material
The tube is flexible for routing through general water-transfer and utility applications. Select the suitable diameter and wall thickness for the installation.
Multiple Size Options
Confirmed sizes range from 1/4 inch to 2 inches. Buyers can match the tube with required connections, fittings, and flow conditions.
Smooth Tube Surface
The supplied product information indicates smooth inner and outer surfaces. This supports practical handling and connection work.
Specified Pressure Range
Listed working pressure is 0.3–0.6 MPa at 23°C, depending on the selected size. Please confirm based on selected size and application.
Coil Supply Format
The listed standard packing length is 100 m per roll. Coiled supply supports storage and transport for distributors.
OEM Order Discussion
Packaging, labels, roll length, and private-label requirements can be discussed before order confirmation.
Customization Options
Size Customization
The confirmed range is 1/4 inch to 2 inches. Other requirements are available according to customer requirements.
Length Customization
The listed standard length is 100 m per roll. Other roll lengths can be discussed before order confirmation.
Color Customization

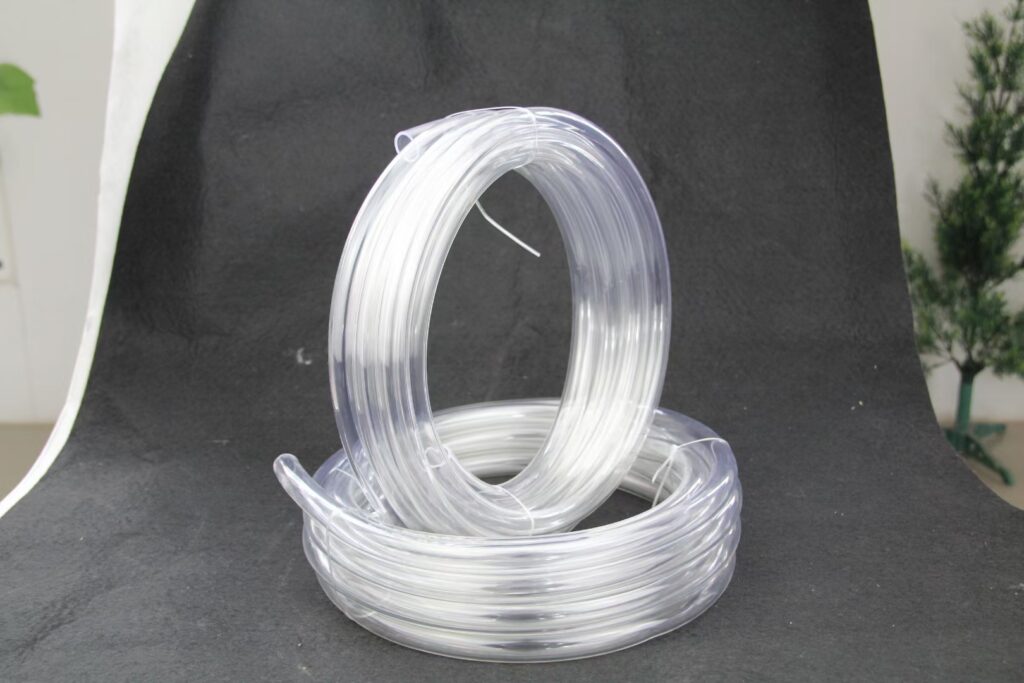

Transparent PVC is shown in the product image. Color requirements are available according to customer requirements.
Packaging Customization
Coil packing, labels, shipping marks, and export packaging can be arranged according to buyer requirements.
OEM and Private Label
Private-label packaging and product-identification requirements can be discussed with Yoshine Hose before production.
Manufacturing Process
Raw Material Preparation
PVC materials are prepared according to the confirmed product specification and order requirement.
PVC Mixing
PVC compound is mixed for the required tube formulation and appearance.
Extrusion
PVC material is extruded to form the transparent tube.
Tube Forming
The tube dimensions are controlled according to the selected inner diameter and outer diameter specification.
Cooling
The formed tube is cooled to stabilize its shape and dimensions.
Cutting
Finished tubing is cut or rolled according to the agreed packing length.
Inspection
Dimensions, appearance, transparency, and other confirmed requirements are checked during production.
Packaging
Approved coils are packed for warehouse handling, container loading, and export shipment.
Quality Control
Raw Material Inspection
PVC materials are checked against the confirmed product requirements before production.
Dimension Inspection
Inner diameter, outer diameter, and roll length are checked according to the selected tube specification.
Appearance Inspection
The tube surface, transparency, visible condition, and coil appearance are checked before packing.
Performance Testing
Performance testing is carried out according to the agreed product specification. Please confirm based on selected size, conveyed medium, and application.
Final Inspection
Finished coils, quantity, packing condition, labels, and agreed shipping marks are checked before shipment.
Packaging & Delivery
Standard Packaging:
PVC Transparent Tube is supplied in coiled rolls. The confirmed standard packing length is 100 m per roll.
Export Packaging:
Export packing can be arranged according to customer requirements to support safe handling during international transportation.
Container Loading:
Loading quantity depends on selected tube size, roll dimensions, packaging method, and container type. Loading details can be confirmed with the quotation.
Shipping Preparation:
Before shipment, orders can be prepared with agreed labels, packing details, shipping marks, and export documents. Please confirm delivery time based on quantity, customization, and destination.
Frequently Asked Questions
What is PVC Transparent Tube used for?
PVC Transparent Tube is used for routine transfer of water, oil, and gas under normal working conditions. Common uses include factory water lines, farms, shipbuilding workshops, utility connections, and household water-transfer tasks. Buyers should confirm the conveyed medium, pressure, temperature, and installation environment before selecting the tube.
Why do buyers select transparent PVC tubing?
The clear hose wall allows users to see the flow inside the tube during use. This can be useful for general water-transfer and utility applications where visual checking is important. Buyers should select the appropriate size and confirm medium compatibility for their intended use.
What sizes are available?
The confirmed specifications show sizes from 1/4 inch to 2 inches, with inner diameters from 6 mm to 50 mm. Select the size according to the required fitting, flow requirement, line length, and installation condition. Please provide these details when requesting a quotation.
What working pressure can this tube handle?
The supplied product information lists working pressure from 0.3 to 0.6 MPa at 23°C, depending on the size. Smaller sizes have higher listed pressure values. Please confirm based on selected size and application, especially when operating pressure, temperature, or conveyed medium differs from normal conditions.
Can this tube be used for oil or gas?
The supplied image lists water, oil, and gas transfer under normal working conditions. However, buyers should confirm compatibility based on the exact medium, concentration, pressure, temperature, and applicable local requirements before placing an order.
Can I order a length other than 100 m per roll?
The confirmed standard length is 100 m per roll. Other roll lengths can be discussed before order confirmation. Availability may depend on selected tube size, packaging method, order quantity, and shipping requirements.
Are custom packaging and private-label options available?
Yes. Coil packing, labels, shipping marks, and private-label packaging can be discussed before production. Please provide your target market, required tube size, packaging reference, label information, and estimated order quantity for review.
What is the MOQ?
MOQ should be confirmed based on selected size, roll length, packaging, and any OEM requirement. Providing the required quantity for each size helps Yoshine Hose prepare a practical quotation and recommend the suitable export packing arrangement.
How is quality checked before shipment?
Inspection can include raw materials, tube dimensions, transparency, appearance, roll length, packing condition, and the agreed product requirement. Buyers with their own inspection standards should share them before order confirmation so the requirements can be reviewed.
What details are needed for a quotation?
Please provide the tube size, required roll length, quantity, conveyed medium, working condition, packaging requirement, destination port, and any OEM or private-label request. This helps Yoshine Hose confirm the suitable configuration and prepare a relevant quotation.
